FAF37減速機加電機重量：

FAF37減速機加0.12KW電機重量21.5KG，F(xiàn)AF37減速機加0.18KW電機重量22KG，F(xiàn)AF37減速機加0.25KW電機重量26KG，F(xiàn)AF37減速機加0.37KW電機重量26.5KG，F(xiàn)AF37減速機加0.55KW電機重量31KG，F(xiàn)AF37減速機加0.75KW電機重量32KG，F(xiàn)AF37減速機加1.1KW電機重量36KG，F(xiàn)AF37減速機加1.5KW電機重量39KG，F(xiàn)AF37減速機加2.2KW電機重量48KG，F(xiàn)AF37減速機加3KW電機重量51KG。齒輪減速機

FAF37減速機加油量：可加齒輪潤滑油

FAF37減速機M4安裝形式加1.25L，F(xiàn)AF37減速機M3安裝形式加0.7L，F(xiàn)AF37減速機M2安裝形式加1.25L，F(xiàn)AF37減速機M1安裝形式加0.95L，F(xiàn)AF37減速機M5安裝形式加1L，F(xiàn)AF37減速機M6安裝形式加1.1L。規定的加注量為參老值。精確值的變化加級數和傳動比有關。請你在加注潤滑油時—定要注意油位螺栓所指示的精確油量。后期調整安裝形式時,您必須根據改變后的安裝形式相應調整加注潤滑劑。上述中列出了安裝形式M1-M6的減速機相應的標準參考潤滑油注入量值。

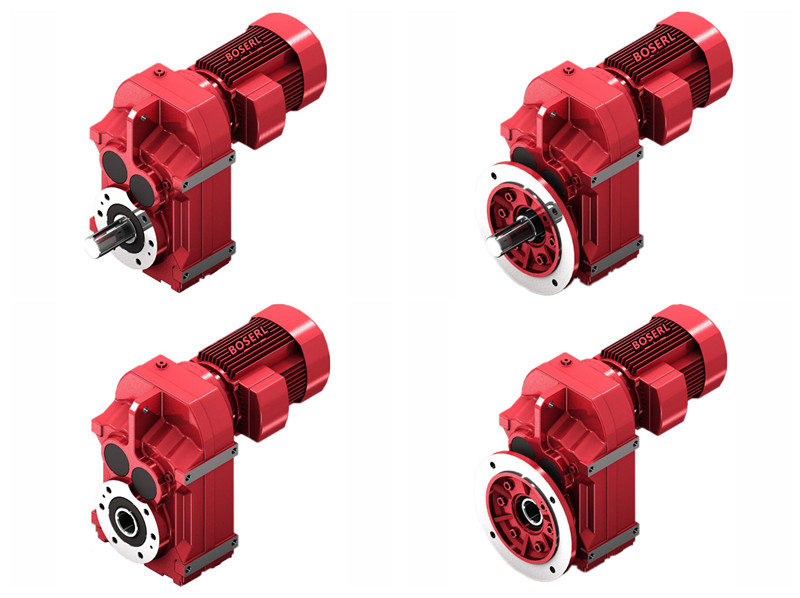

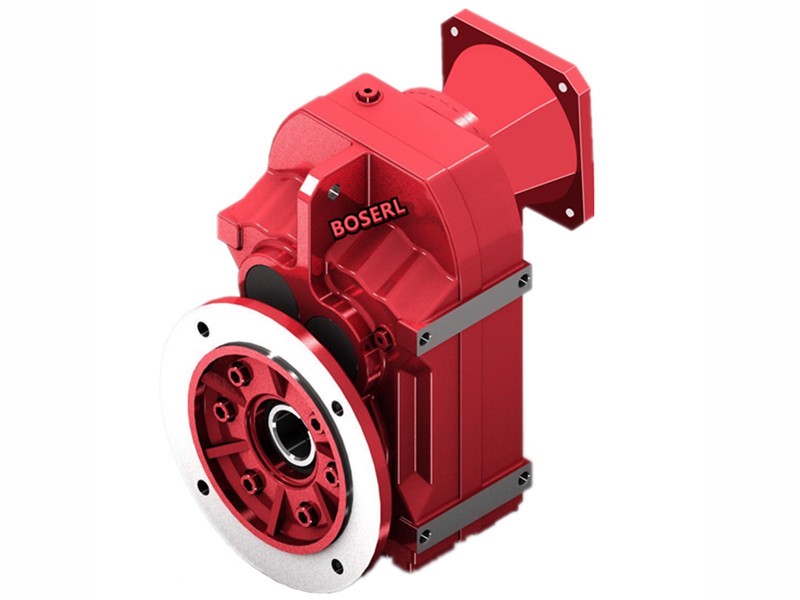

FAF37減速機實物圖：圖一為FAF37立式法蘭孔輸出平行軸斜齒輪減速機，圖二F37底腳安裝形式軸輸出平行軸減速機，圖三為FF37立式法蘭軸輸出平行軸斜齒輪減速機，圖四為FA37臥式孔輸出平行軸斜齒輪減速機。

FAF37減速機型號表示方法：

FAF37減速機型號結構FAF37-B0.75KW-4P-減速比-安裝形式-接線盒位置。

FAF37減速機性能參數表結構說明：TF電機熱保護裝置，HR手動釋放裝置，HF手動釋放裝置加自鎖功能，F(xiàn)AF37，F(xiàn)37，F(xiàn)AF37，F(xiàn)A37減速機機座號，N代表徑向負荷，KW代表電機功率，1/min代表輸出轉數，Nm代表輸出扭矩。

FAF37減速機電機接線盒方位說明：本頁附件選型目錄視圖為M1安裝形式，方向?yàn)?從電機尾部的風罩向前看。可提供R(0°)，B(90°），L(180° )，T（270°)四種電機接線盒方位。其中R(0°)位置是默認方位,如無特別說明，將按默認方位提供。可提供S和N兩種進線方位,其中S位置將按默認方位。如無特別說明，將按默認方位R(0°)提供。齒輪減速機

FAF37減速機參數：

FAF37減速機輸出扭矩200N.m，190N.m，185N.m，175N.m，170N.m，145N.m，140N.m，135N.m，125N.m，120N.m，110N.m，105N.m。（以上扭矩均為四級電機得出扭矩，需要比上面更大的扭矩，可把電機功率加大，減速機型號加大，或者選擇跟R系列減速機組合使用）

FAF37減速機減速比1:128，1:117，1:100，1:86，1:80，1:70，1:66，1:58，1:54，1:51，1:47，1:43，1:38，1:35，1:31，1:28，1:23，1:20，1:19，1:17，1:15，1:14，1:12，1:11，1:10，1:9，1:8，1:7，1:6，1:5，1:4，1:3

FAF37減速機輸出轉數：11轉，12轉，14轉，16轉，17轉，20轉，21轉，24轉，26轉，27轉，30轉，32轉，37轉，39轉，44轉，50轉，59轉，68轉，73轉，82轉，89轉，98轉，109轉，126轉，134轉，156轉，175轉，188轉，208轉，231轉，269轉，286轉，332轉，371轉。（以上轉數均為四級電機算出的，可用2P，6P，8P計算，也可以用變頻電機調速，當需要特別低速輸出時，可選擇R系列減速機作為F系列減速機的輸入）

FAF37減速機電機可加直流，變頻，剎車，防爆，伺服，交流，三相，單相電機FAF37加0.12KW，F(xiàn)AF37加0.18KW，F(xiàn)AF37加0.25KW，F(xiàn)AF37加0.37KW，F(xiàn)AF37加0.55KW，F(xiàn)AF37加0.75KW，F(xiàn)AF37加1.1KW，F(xiàn)AF37加1.5KW，F(xiàn)AF37加2.2KW，F(xiàn)AF37加3KW。

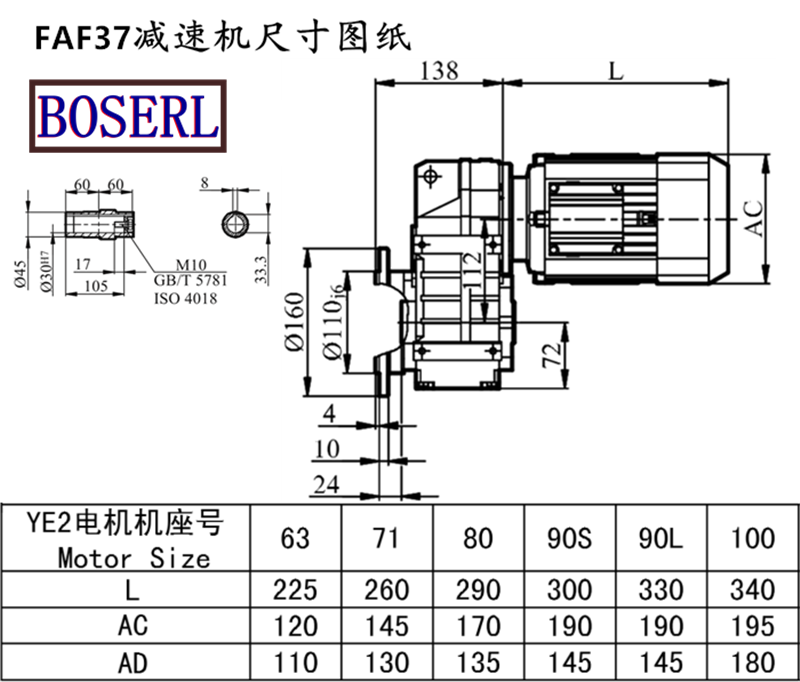

FAF37減速機外觀尺寸：輸出孔直徑Φ30+鍵3.3（可定做），高248*寬165*長138（帶法蘭）

FAF37減速機型號：FAF37AQA80,FAF37AQA100,FAF37AQA115,FAF37AQA140,FAF37AQA160,FAF37AQA190,FAF37AQH80,FAF37AQH100,FAF37AQH115,FAF37AQH140,FAF37AQH160,FAF37AQH190,JRTFAF37-Y0.12KW,JRTFAF37-Y0.18KW,JRTFAF37-Y0.25KW,JRTFAF37-Y0.AF37KW,JRTFAF37-Y0.55KW,JRTFAF37-Y0.75KW,JRTFAF37-Y1.1KW,JRTFAF37-Y1.5KW,JRTFAF37-Y100M4,JRTFAF37-Y2.2KW,JRTFAF37-Y3KW,JRTFAF37-Y63M4,JRTFAF37-Y71M4,JRTFAF37-Y80M4,JRTFAF37-Y90M4,JRTFAF37-YEJ100M4,JRTFAF37-YEJ63M4,JRTFAF37-YEJ71M4,JRTFAF37-YEJ80M4,JRTFAF37-YEJ90M4,JRTFAF37-YS100M4,JRTFAF37-YS63M4,JRTFAF37-YS71M4,JRTFAF37-YS80M4,JRTFAF37-YS90M4,JRTFAF37-YVP100M4,JRTFAF37-YVP63M4,JRTFAF37-YVP71M4,JRTFAF37-YVP80M4,JRTFAF37-YVP90M4,JRTFAF37-YVPEJ100M4,JRTFAF37-YVPEJ63M4,JRTFAF37-YVPEJ71M4,JRTFAF37-YVPEJ80M4,JRTFAF37-YVPEJ90M4,EWFAF37-Y0.12KW,EWFAF37-Y0.18KW,EWFAF37-Y0.25KW,EWFAF37-Y0.AF37KW,EWFAF37-Y0.55KW,EWFAF37-Y0.75KW,EWFAF37-Y1.1KW,EWFAF37-Y1.5KW,EWFAF37-Y100M4,EWFAF37-Y2.2KW,EWFAF37-Y3KW,EWFAF37-Y63M4,EWFAF37-Y71M4,EWFAF37-Y80M4,EWFAF37-Y90M4,EWFAF37-YEJ100M4,EWFAF37-YEJ63M4,EWFAF37-YEJ71M4,EWFAF37-YEJ80M4,EWFAF37-YEJ90M4,EWFAF37-YS100M4,EWFAF37-YS63M4,EWFAF37-YS71M4,EWFAF37-YS80M4,EWFAF37-YS90M4,EWFAF37-YVP100M4,EWFAF37-YVP63M4,EWFAF37-YVP71M4,EWFAF37-YVP80M4,EWFAF37-YVP90M4,EWFAF37-YVPEJ100M4,EWFAF37-YVPEJ63M4,EWFAF37-YVPEJ71M4,EWFAF37-YVPEJ80M4,EWFAF37-YVPEJ90M4,SLFAF37-Y0.12KW,SLFAF37-Y0.18KW,SLFAF37-Y0.25KW,SLFAF37-Y0.AF37KW,SLFAF37-Y0.55KW,SLFAF37-Y0.75KW,SLFAF37-Y1.1KW,SLFAF37-Y1.5KW,SLFAF37-Y100M4,SLFAF37-Y2.2KW,SLFAF37-Y3KW,SLFAF37-Y63M4,SLFAF37-Y71M4,SLFAF37-Y80M4,SLFAF37-Y90M4,SLFAF37-YEJ100M4,SLFAF37-YEJ63M4,SLFAF37-YEJ71M4,SLFAF37-YEJ80M4,SLFAF37-YEJ90M4,SLFAF37-YS100M4,SLFAF37-YS63M4,SLFAF37-YS71M4,SLFAF37-YS80M4,SLFAF37-YS90M4,SLFAF37-YVP100M4,SLFAF37-YVP63M4,SLFAF37-YVP71M4,SLFAF37-YVP80M4,SLFAF37-YVP90M4,SLFAF37-YVPEJ100M4,SLFAF37-YVPEJ63M4,SLFAF37-YVPEJ71M4,SLFAF37-YVPEJ80M4,SLFAF37-YVPEJ90M4,DSZFAF37-Y0.12KW,DSZFAF37-Y0.18KW,DSZFAF37-Y0.25KW,DSZFAF37-Y0.AF37KW,DSZFAF37-Y0.55KW,DSZFAF37-Y0.75KW,DSZFAF37-Y1.1KW,DSZFAF37-Y1.5KW,DSZFAF37-Y100M4,DSZFAF37-Y2.2KW,DSZFAF37-Y3KW,DSZFAF37-Y63M4,DSZFAF37-Y71M4,DSZFAF37-Y80M4,DSZFAF37-Y90M4,DSZFAF37-YEJ100M4,DSZFAF37-YEJ63M4,DSZFAF37-YEJ71M4,DSZFAF37-YEJ80M4,DSZFAF37-YEJ90M4,DSZFAF37-YS100M4,DSZFAF37-YS63M4,DSZFAF37-YS71M4,DSZFAF37-YS80M4,DSZFAF37-YS90M4,DSZFAF37-YVP100M4,DSZFAF37-YVP63M4,DSZFAF37-YVP71M4,DSZFAF37-YVP80M4,DSZFAF37-YVP90M4,DSZFAF37-YVPEJ100M4,DSZFAF37-YVPEJ63M4,DSZFAF37-YVPEJ71M4,DSZFAF37-YVPEJ80M4,DSZFAF37-YVPEJ90M4,BFAF37-Y0.12KW,BFAF37-Y0.18KW,BFAF37-Y0.25KW,BFAF37-Y0.AF37KW,BFAF37-Y0.55KW,BFAF37-Y0.75KW,BFAF37-Y1.1KW,BFAF37-Y1.5KW,BFAF37-Y100M4,BFAF37-Y2.2KW,BFAF37-Y3KW,BFAF37-Y63M4,BFAF37-Y71M4,BFAF37-Y80M4,BFAF37-Y90M4,BFAF37-YEJ100M4,BFAF37-YEJ63M4,BFAF37-YEJ71M4,BFAF37-YEJ80M4,BFAF37-YEJ90M4,BFAF37-YS100M4,BFAF37-YS63M4,BFAF37-YS71M4,BFAF37-YS80M4,BFAF37-YS90M4,BFAF37-YVP100M4,BFAF37-YVP63M4,BFAF37-YVP71M4,BFAF37-YVP80M4,BFAF37-YVP90M4,BFAF37-YVPEJ100M4,BFAF37-YVPEJ63M4,BFAF37-YVPEJ71M4,BFAF37-YVPEJ80M4,BFAF37-YVPEJ90M4,GFAF37-Y0.12KW,GFAF37-Y0.18KW,GFAF37-Y0.25KW,GFAF37-Y0.AF37KW,GFAF37-Y0.55KW,GFAF37-Y0.75KW,GFAF37-Y1.1KW,GFAF37-Y1.5KW,GFAF37-Y100M4,GFAF37-Y2.2KW,GFAF37-Y3KW,GFAF37-Y63M4,GFAF37-Y71M4,GFAF37-Y80M4,GFAF37-Y90M4,GFAF37-YEJ100M4,GFAF37-YEJ63M4,GFAF37-YEJ71M4,GFAF37-YEJ80M4,GFAF37-YEJ90M4,GFAF37-YS100M4,GFAF37-YS63M4,GFAF37-YS71M4,GFAF37-YS80M4,GFAF37-YS90M4,GFAF37-YVP100M4,GFAF37-YVP63M4,GFAF37-YVP71M4,GFAF37-YVP80M4,GFAF37-YVP90M4,GFAF37-YVPEJ100M4,GFAF37-YVPEJ63M4,GFAF37-YVPEJ71M4,GFAF37-YVPEJ80M4,GFAF37-YVPEJ90M4,FCAF37-Y0.12KW,FCAF37-Y0.18KW,FCAF37-Y0.25KW,FCAF37-Y0.AF37KW,FCAF37-Y0.55KW,FCAF37-Y0.75KW,FCAF37-Y1.1KW,FCAF37-Y1.5KW,FCAF37-Y100M4,FCAF37-Y2.2KW,FCAF37-Y3KW,FCAF37-Y63M4,FCAF37-Y71M4,FCAF37-Y80M4,FCAF37-Y90M4,FCAF37-YEJ100M4,FCAF37-YEJ63M4,FCAF37-YEJ71M4,FCAF37-YEJ80M4,FCAF37-YEJ90M4,FCAF37-YS100M4,FCAF37-YS63M4,FCAF37-YS71M4,FCAF37-YS80M4,FCAF37-YS90M4,FCAF37-YVP100M4,FCAF37-YVP63M4,FCAF37-YVP71M4,FCAF37-YVP80M4,FCAF37-YVP90M4,FCAF37-YVPEJ100M4,FCAF37-YVPEJ63M4,FCAF37-YVPEJ71M4,FCAF37-YVPEJ80M4,FCAF37-YVPEJ90M4,MTPAF37-Y0.12KW,MTPAF37-Y0.18KW,MTPAF37-Y0.25KW,MTPAF37-Y0.AF37KW,MTPAF37-Y0.55KW,MTPAF37-Y0.75KW,MTPAF37-Y1.1KW,MTPAF37-Y1.5KW,MTPAF37-Y100M4,MTPAF37-Y2.2KW,MTPAF37-Y3KW,MTPAF37-Y63M4,MTPAF37-Y71M4,MTPAF37-Y80M4,MTPAF37-Y90M4,MTPAF37-YEJ100M4,MTPAF37-YEJ63M4,MTPAF37-YEJ71M4,MTPAF37-YEJ80M4,MTPAF37-YEJ90M4,MTPAF37-YS100M4,MTPAF37-YS63M4,MTPAF37-YS71M4,MTPAF37-YS80M4,MTPAF37-YS90M4,MTPAF37-YVP100M4,MTPAF37-YVP63M4,MTPAF37-YVP71M4,MTPAF37-YVP80M4,MTPAF37-YVP90M4,MTPAF37-YVPEJ100M4,MTPAF37-YVPEJ63M4,MTPAF37-YVPEJ71M4,MTPAF37-YVPEJ80M4,MTPAF37-YVPEJ90M4,WXFAF37-WSS0.12KW,WXFAF37-WSS0.18KW,WXFAF37-WSS0.25KW,WXFAF37-WSS0.AF37KW,WXFAF37-WSS0.55KW,WXFAF37-WSS0.75KW,WXFAF37-WSS1.1KW,WXFAF37-WSS1.5KW,WXFAF37-WSS100M4,WXFAF37-WSS2.2KW,WXFAF37-WSS3KW,WXFAF37-WSS63M4,WXFAF37-WSS71M4,WXFAF37-WSS80M4,WXFAF37-WSS90M4,WXFAF37-WSSB100M4,WXFAF37-WSSB63M4,WXFAF37-WSSB71M4,WXFAF37-WSSB80M4,WXFAF37-WSSB90M4,WXFAF37-WSSVP100M4,WXFAF37-WSSVP63M4,WXFAF37-WSSVP71M4,WXFAF37-WSSVP80M4,WXFAF37-WSSVP90M4,WXFAF37-WSSVPB100M4,WXFAF37-WSSVPB63M4,WXFAF37-WSSVPB71M4,WXFAF37-WSSVPB80M4,WXFAF37-WSSVPB90M4。變頻電機減速機
